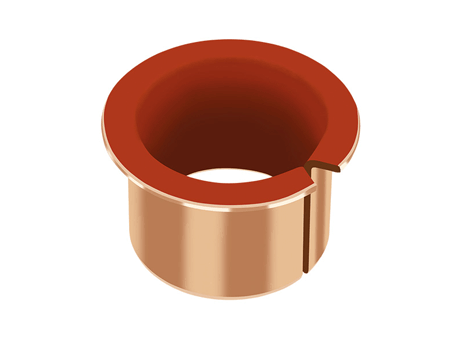

GGB DP4-B flanged bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

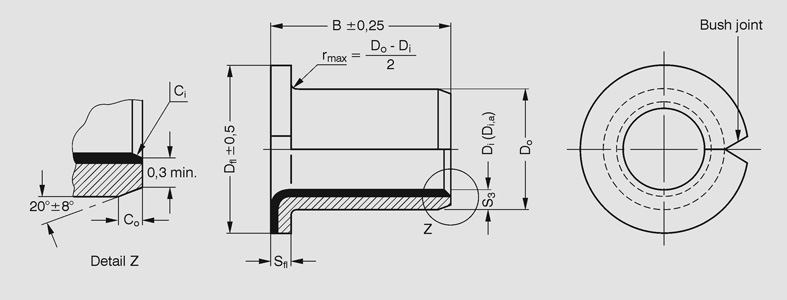

Part Number	B	Do	Dfl	Di	Sfl	CAD
BB0304DP4B	N/A 4 mm	N/A 4.5 mm	N/A 7 mm	N/A 3 mm	N/A 0.75 mm	N/A
BB0404DP4B	N/A 4 mm	N/A 5.5 mm	N/A 9 mm	N/A 4 mm	N/A 0.75 mm	N/A
BB0505DP4B	N/A 5 mm	N/A 7 mm	N/A 10 mm	N/A 5 mm	N/A 0.925 mm	N/A
BB0608DP4B	N/A 8 mm	N/A 8 mm	N/A 12 mm	N/A 6 mm	N/A 0.925 mm	N/A
BB0806DP4B	N/A 5.5 mm	N/A 10 mm	N/A 15 mm	N/A 8 mm	N/A 0.925 mm	N/A
BB0810DP4B	N/A 9.5 mm	N/A 10 mm	N/A 15 mm	N/A 8 mm	N/A 0.925 mm	N/A
BB1007DP4B	N/A 7 mm	N/A 12 mm	N/A 18 mm	N/A 10 mm	N/A 0.925 mm	N/A
BB1012DP4B	N/A 12 mm	N/A 12 mm	N/A 18 mm	N/A 10 mm	N/A 0.925 mm	N/A
BB1207DP4B	N/A 7 mm	N/A 14 mm	N/A 20 mm	N/A 12 mm	N/A 0.925 mm	N/A
BB1209DP4B	N/A 9 mm	N/A 14 mm	N/A 20 mm	N/A 12 mm	N/A 0.925 mm	N/A
BB1212DP4B	N/A 12 mm	N/A 14 mm	N/A 20 mm	N/A 12 mm	N/A 0.925 mm	N/A
BB1417DP4B	N/A 17 mm	N/A 16 mm	N/A 22 mm	N/A 14 mm	N/A 0.925 mm	N/A
BB1512DP4B	N/A 12 mm	N/A 17 mm	N/A 23 mm	N/A 15 mm	N/A 0.925 mm	N/A
BB1517DP4B	N/A 17 mm	N/A 17 mm	N/A 23 mm	N/A 15 mm	N/A 0.925 mm	N/A
BB1612DP4B	N/A 12 mm	N/A 18 mm	N/A 24 mm	N/A 16 mm	N/A 0.925 mm	N/A
BB1617DP4B	N/A 17 mm	N/A 18 mm	N/A 24 mm	N/A 16 mm	N/A 0.925 mm	N/A
BB1812DP4B	N/A 12 mm	N/A 20 mm	N/A 26 mm	N/A 18 mm	N/A 0.925 mm	N/A
BB1822DP4B	N/A 22 mm	N/A 20 mm	N/A 26 mm	N/A 18 mm	N/A 0.925 mm	N/A
BB2012DP4B	N/A 11.5 mm	N/A 23 mm	N/A 30 mm	N/A 20 mm	N/A 1.45 mm	N/A
BB2017DP4B	N/A 16.5 mm	N/A 23 mm	N/A 30 mm	N/A 20 mm	N/A 1.45 mm	N/A
BB2512DP4B	N/A 11.5 mm	N/A 28 mm	N/A 35 mm	N/A 25 mm	N/A 1.45 mm	N/A
BB2522DP4B	N/A 21.5 mm	N/A 28 mm	N/A 35 mm	N/A 25 mm	N/A 1.45 mm	N/A
BB3016DP4B	N/A 16 mm	N/A 34 mm	N/A 42 mm	N/A 30 mm	N/A 1.95 mm	N/A
BB3026DP4B	N/A 26 mm	N/A 34 mm	N/A 42 mm	N/A 30 mm	N/A 1.95 mm	N/A
BB3526DP4B	N/A 26 mm	N/A 39 mm	N/A 47 mm	N/A 35 mm	N/A 1.95 mm	N/A

Part Number

B

Do

Dfl

Di

Sfl

CAD

BB0304DP4B

N/A 4 mm

N/A 4.5 mm

N/A 7 mm

N/A 3 mm

N/A 0.75 mm

N/A

BB0404DP4B

N/A 4 mm

N/A 5.5 mm

N/A 9 mm

N/A 4 mm

N/A 0.75 mm

N/A

BB0505DP4B

N/A 5 mm

N/A 7 mm

N/A 10 mm

N/A 5 mm

N/A 0.925 mm

N/A

BB0608DP4B

N/A 8 mm

N/A 12 mm

N/A 6 mm

N/A 0.925 mm

N/A

BB0806DP4B

N/A 5.5 mm

N/A 10 mm

N/A 15 mm

N/A 8 mm

N/A 0.925 mm

N/A

BB0810DP4B

N/A 9.5 mm

N/A 10 mm

N/A 15 mm

N/A 8 mm

N/A 0.925 mm

N/A

BB1007DP4B

N/A 7 mm

N/A 12 mm

N/A 18 mm

N/A 10 mm

N/A 0.925 mm

N/A

BB1012DP4B

N/A 12 mm

N/A 18 mm

N/A 10 mm

N/A 0.925 mm

N/A

BB1207DP4B

N/A 7 mm

N/A 14 mm

N/A 20 mm

N/A 12 mm

N/A 0.925 mm

N/A

BB1209DP4B

N/A 9 mm

N/A 14 mm

N/A 20 mm

N/A 12 mm

N/A 0.925 mm

N/A

BB1212DP4B

N/A 12 mm

N/A 14 mm

N/A 20 mm

N/A 12 mm

N/A 0.925 mm

N/A

BB1417DP4B

N/A 17 mm

N/A 16 mm

N/A 22 mm

N/A 14 mm

N/A 0.925 mm

N/A

BB1512DP4B

N/A 12 mm

N/A 17 mm

N/A 23 mm

N/A 15 mm

N/A 0.925 mm

N/A

BB1517DP4B

N/A 17 mm

N/A 23 mm

N/A 15 mm

N/A 0.925 mm

N/A

BB1612DP4B

N/A 12 mm

N/A 18 mm

N/A 24 mm

N/A 16 mm

N/A 0.925 mm

N/A

BB1617DP4B

N/A 17 mm

N/A 18 mm

N/A 24 mm

N/A 16 mm

N/A 0.925 mm

N/A

BB1812DP4B

N/A 12 mm

N/A 20 mm

N/A 26 mm

N/A 18 mm

N/A 0.925 mm

N/A

BB1822DP4B

N/A 22 mm

N/A 20 mm

N/A 26 mm

N/A 18 mm

N/A 0.925 mm

N/A

BB2012DP4B

N/A 11.5 mm

N/A 23 mm

N/A 30 mm

N/A 20 mm

N/A 1.45 mm

N/A

BB2017DP4B

N/A 16.5 mm

N/A 23 mm

N/A 30 mm

N/A 20 mm

N/A 1.45 mm

N/A

BB2512DP4B

N/A 11.5 mm

N/A 28 mm

N/A 35 mm

N/A 25 mm

N/A 1.45 mm

N/A

BB2522DP4B

N/A 21.5 mm

N/A 28 mm

N/A 35 mm

N/A 25 mm

N/A 1.45 mm

N/A

BB3016DP4B

N/A 16 mm

N/A 34 mm

N/A 42 mm

N/A 30 mm

N/A 1.95 mm

N/A

BB3026DP4B

N/A 26 mm

N/A 34 mm

N/A 42 mm

N/A 30 mm

N/A 1.95 mm

N/A

BB3526DP4B

N/A 26 mm

N/A 39 mm

N/A 47 mm

N/A 35 mm

N/A 1.95 mm

N/A
