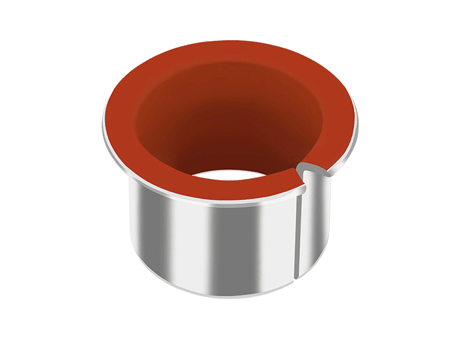

  • GGB DP4 flanged bushes - inch
  • GGB-DP4-flanged-bushes---inch-dimensions
1 - 25 of 33 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Add to CAD Cart
Clear Filter

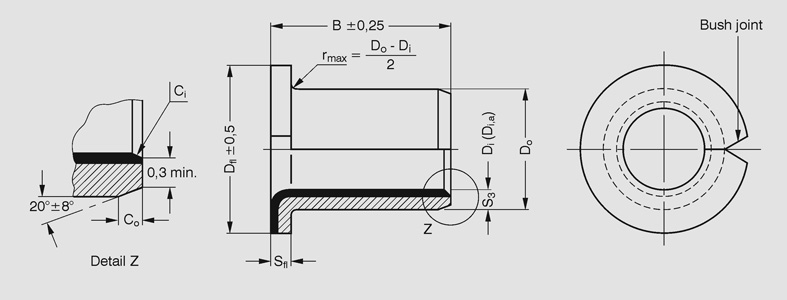

B (in)

Do (in)

Di (in)

Part Number

B

Do

Dfl

Di

Sfl

CAD

N/A 0.245 in N/A 0.46875 in N/A 0.6875 in N/A 0.375 in N/A 0.043 in N/A CAD
N/A 0.37 in N/A 0.46875 in N/A 0.6875 in N/A 0.375 in N/A 0.043 in N/A CAD
N/A 0.495 in N/A 0.46875 in N/A 0.6875 in N/A 0.375 in N/A 0.043 in N/A CAD
N/A 0.745 in N/A 0.46875 in N/A 0.6875 in N/A 0.375 in N/A 0.043 in N/A CAD
N/A 0.245 in N/A 0.59375 in N/A 0.8125 in N/A 0.5 in N/A 0.043 in N/A CAD
N/A 0.37 in N/A 0.59375 in N/A 0.8125 in N/A 0.5 in N/A 0.043 in N/A CAD
N/A 0.495 in N/A 0.59375 in N/A 0.8125 in N/A 0.5 in N/A 0.043 in N/A CAD
N/A 0.745 in N/A 0.59375 in N/A 0.8125 in N/A 0.5 in N/A 0.043 in N/A CAD
N/A 0.37 in N/A 0.71875 in N/A 0.93725 in N/A 0.625 in N/A 0.043 in N/A CAD
N/A 0.495 in N/A 0.71875 in N/A 0.93725 in N/A 0.625 in N/A 0.043 in N/A CAD
N/A 0.62 in N/A 0.71875 in N/A 0.93725 in N/A 0.625 in N/A 0.043 in N/A CAD
N/A 0.745 in N/A 0.71875 in N/A 0.93725 in N/A 0.625 in N/A 0.043 in N/A CAD
N/A 0.37 in N/A 0.875 in N/A 1.25 in N/A 0.75 in N/A 0.059 in N/A CAD
N/A 0.495 in N/A 0.875 in N/A 1.25 in N/A 0.75 in N/A 0.059 in N/A CAD
N/A 0.745 in N/A 0.875 in N/A 1.25 in N/A 0.75 in N/A 0.059 in N/A CAD
N/A 0.995 in N/A 0.875 in N/A 1.25 in N/A 0.75 in N/A 0.059 in N/A CAD
N/A 0.495 in N/A 1 in N/A 1.25 in N/A 0.875 in N/A 0.059 in N/A CAD
N/A 0.745 in N/A 1 in N/A 1.25 in N/A 0.875 in N/A 0.059 in N/A CAD
N/A 0.995 in N/A 1 in N/A 1.25 in N/A 0.875 in N/A 0.059 in N/A CAD
N/A 1.245 in N/A 1 in N/A 1.25 in N/A 0.875 in N/A 0.059 in N/A CAD
N/A 0.495 in N/A 1.125 in N/A 1.375 in N/A 1 in N/A 0.059 in N/A CAD
N/A 0.745 in N/A 1.125 in N/A 1.375 in N/A 1 in N/A 0.059 in N/A CAD
N/A 0.995 in N/A 1.125 in N/A 1.375 in N/A 1 in N/A 0.059 in N/A CAD
N/A 1.245 in N/A 1.125 in N/A 1.375 in N/A 1 in N/A 0.059 in N/A CAD
N/A 0.995 in N/A 1.40625 in N/A 1.75 in N/A 1.25 in N/A 0.074 in N/A CAD
1 - 25 of 33 | Results Per Page | View | Unit of Measure
1 2
