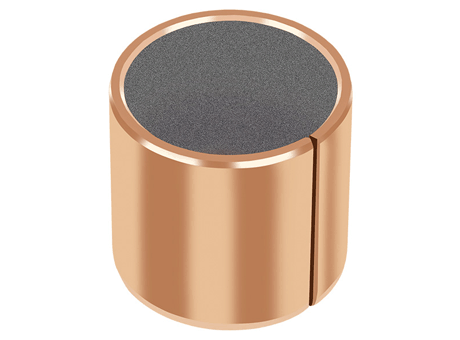

GGB DU-B bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

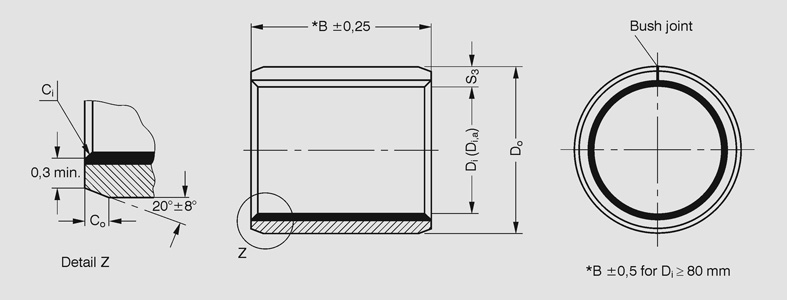

Part Number	B	Do	Di	ep	CAD
0203DUB	N/A 3 mm	N/A 3.5 mm	N/A 2 mm	N/A 0.75 mm	N/A
0205DUB	N/A 5 mm	N/A 3.5 mm	N/A 2 mm	N/A 0.75 mm	N/A
0306DUB	N/A 6 mm	N/A 4.5 mm	N/A 3 mm	N/A 0.75 mm	N/A
0404DUB	N/A 4 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0406DUB	N/A 6 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0505DUB	N/A 5 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0510DUB	N/A 10 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0606DUB	N/A 6 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0608DUB	N/A 8 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0610DUB	N/A 10 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0808DUB	N/A 8 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0810DUB	N/A 10 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0812DUB	N/A 12 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
1010DUB	N/A 10 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1015DUB	N/A 15 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1208DUB	N/A 8 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1210DUB	N/A 10 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1212DUB	N/A 12 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1215DUB	N/A 15 mm	N/A 14 mm	N/A 12 mm	N/A 1 mm	N/A
1410DUB	N/A 10 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1415DUB	N/A 15 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1420DUB	N/A 20 mm	N/A 16 mm	N/A 14 mm	N/A 1 mm	N/A
1515DUB	N/A 15 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
1525DUB	N/A 25 mm	N/A 17 mm	N/A 15 mm	N/A 1 mm	N/A
1615DUB	N/A 15 mm	N/A 18 mm	N/A 16 mm	N/A 1 mm	N/A

Part Number

B

Do

Di

ep

CAD

0203DUB

N/A 3 mm

N/A 3.5 mm

N/A 2 mm

N/A 0.75 mm

N/A

0205DUB

N/A 5 mm

N/A 3.5 mm

N/A 2 mm

N/A 0.75 mm

N/A

0306DUB

N/A 6 mm

N/A 4.5 mm

N/A 3 mm

N/A 0.75 mm

N/A

0404DUB

N/A 4 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0406DUB

N/A 6 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0505DUB

N/A 5 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0510DUB

N/A 10 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0606DUB

N/A 6 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0608DUB

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0610DUB

N/A 10 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0808DUB

N/A 8 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0810DUB

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0812DUB

N/A 12 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

1010DUB

N/A 10 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1015DUB

N/A 15 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1208DUB

N/A 8 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1210DUB

N/A 10 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1212DUB

N/A 12 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1215DUB

N/A 15 mm

N/A 14 mm

N/A 12 mm

N/A 1 mm

N/A

1410DUB

N/A 10 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1415DUB

N/A 15 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1420DUB

N/A 20 mm

N/A 16 mm

N/A 14 mm

N/A 1 mm

N/A

1515DUB

N/A 15 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

1525DUB

N/A 25 mm

N/A 17 mm

N/A 15 mm

N/A 1 mm

N/A

1615DUB

N/A 15 mm

N/A 18 mm

N/A 16 mm

N/A 1 mm

N/A
