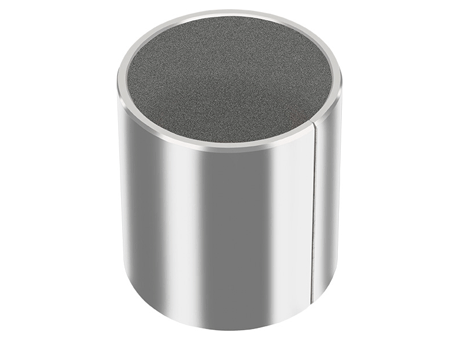

GGB DU bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

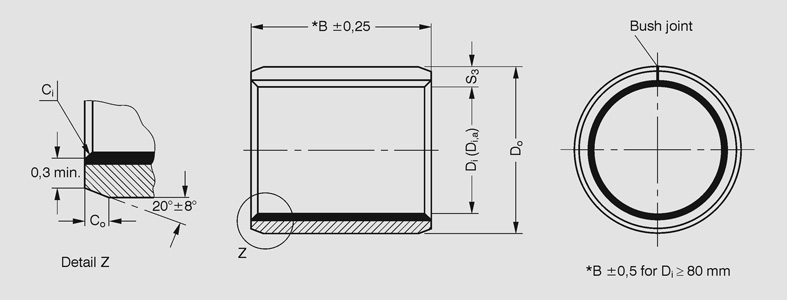

Part Number	B	Do	Di	ep	CAD
0203DU	N/A 3 mm	N/A 3.5 mm	N/A 2 mm	N/A 0.75 mm	N/A
0205DU	N/A 5 mm	N/A 3.5 mm	N/A 2 mm	N/A 0.75 mm	N/A
0303DU	N/A 3 mm	N/A 4.5 mm	N/A 3 mm	N/A 0.75 mm	N/A
0305DU	N/A 5 mm	N/A 4.5 mm	N/A 3 mm	N/A 0.75 mm	N/A
0306DU	N/A 6 mm	N/A 4.5 mm	N/A 3 mm	N/A 0.75 mm	N/A
0403DU	N/A 3 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0404DU	N/A 4 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0406DU	N/A 6 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0410DU	N/A 10 mm	N/A 5.5 mm	N/A 4 mm	N/A 0.75 mm	N/A
0505DU	N/A 5 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0508DU	N/A 8 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0510DU	N/A 10 mm	N/A 7 mm	N/A 5 mm	N/A 1 mm	N/A
0604DU	N/A 4 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0606DU	N/A 6 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0608DU	N/A 8 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0610DU	N/A 10 mm	N/A 8 mm	N/A 6 mm	N/A 1 mm	N/A
0705DU	N/A 5 mm	N/A 9 mm	N/A 7 mm	N/A 1 mm	N/A
0710DU	N/A 10 mm	N/A 9 mm	N/A 7 mm	N/A 1 mm	N/A
0806DU	N/A 6 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0808DU	N/A 8 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0810DU	N/A 10 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
0812DU	N/A 12 mm	N/A 10 mm	N/A 8 mm	N/A 1 mm	N/A
1006DU	N/A 6 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1008DU	N/A 8 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A
1010DU	N/A 10 mm	N/A 12 mm	N/A 10 mm	N/A 1 mm	N/A

Part Number

B

Do

Di

ep

CAD

0203DU

N/A 3 mm

N/A 3.5 mm

N/A 2 mm

N/A 0.75 mm

N/A

0205DU

N/A 5 mm

N/A 3.5 mm

N/A 2 mm

N/A 0.75 mm

N/A

0303DU

N/A 3 mm

N/A 4.5 mm

N/A 3 mm

N/A 0.75 mm

N/A

0305DU

N/A 5 mm

N/A 4.5 mm

N/A 3 mm

N/A 0.75 mm

N/A

0306DU

N/A 6 mm

N/A 4.5 mm

N/A 3 mm

N/A 0.75 mm

N/A

0403DU

N/A 3 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0404DU

N/A 4 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0406DU

N/A 6 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0410DU

N/A 10 mm

N/A 5.5 mm

N/A 4 mm

N/A 0.75 mm

N/A

0505DU

N/A 5 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0508DU

N/A 8 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0510DU

N/A 10 mm

N/A 7 mm

N/A 5 mm

N/A 1 mm

N/A

0604DU

N/A 4 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0606DU

N/A 6 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0608DU

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0610DU

N/A 10 mm

N/A 8 mm

N/A 6 mm

N/A 1 mm

N/A

0705DU

N/A 5 mm

N/A 9 mm

N/A 7 mm

N/A 1 mm

N/A

0710DU

N/A 10 mm

N/A 9 mm

N/A 7 mm

N/A 1 mm

N/A

0806DU

N/A 6 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0808DU

N/A 8 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0810DU

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

0812DU

N/A 12 mm

N/A 10 mm

N/A 8 mm

N/A 1 mm

N/A

1006DU

N/A 6 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1008DU

N/A 8 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A

1010DU

N/A 10 mm

N/A 12 mm

N/A 10 mm

N/A 1 mm

N/A
