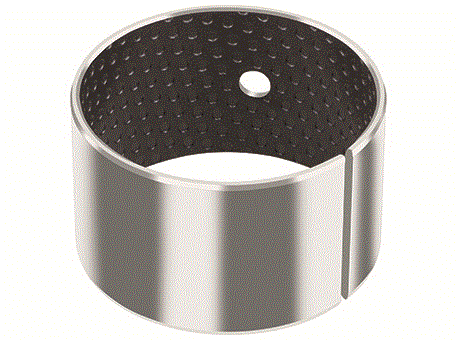

GGB PMHX bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

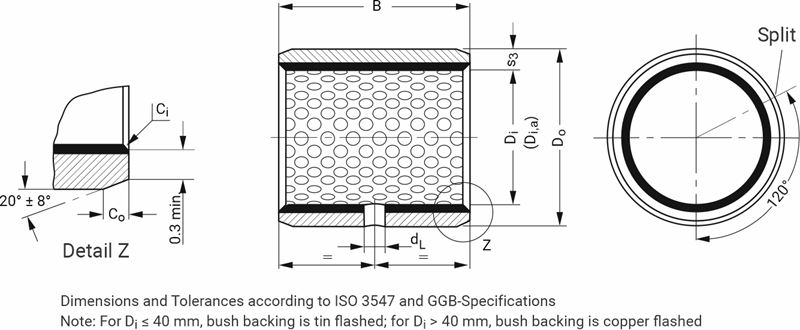

Part Number	B	Do	Di	Ø dL	ep	CAD
PM0812HX	N/A 12 mm	N/A 10 mm	N/A 8 mm	N/A	N/A 1 mm	N/A
PM1015HX	N/A 15 mm	N/A 12 mm	N/A 10 mm	N/A 4 mm	N/A 1 mm	N/A
PM1020HX	N/A 20 mm	N/A 12 mm	N/A 10 mm	N/A 4 mm	N/A 1 mm	N/A
PM1215HX	N/A 15 mm	N/A 14 mm	N/A 12 mm	N/A 4 mm	N/A 1 mm	N/A
PM1615HX	N/A 15 mm	N/A 18 mm	N/A 16 mm	N/A 4 mm	N/A 1 mm	N/A
PM1815HX	N/A 15 mm	N/A 20 mm	N/A 18 mm	N/A 4 mm	N/A 1 mm	N/A
PM1820HX	N/A 20 mm	N/A 20 mm	N/A 18 mm	N/A 4 mm	N/A 1 mm	N/A
PM2230HX	N/A 30 mm	N/A 25 mm	N/A 22 mm	N/A 6 mm	N/A 1.5 mm	N/A
PM2520HX	N/A 20 mm	N/A 28 mm	N/A 25 mm	N/A 6 mm	N/A 1.5 mm	N/A
PM2525HX	N/A 25 mm	N/A 28 mm	N/A 25 mm	N/A 6 mm	N/A 1.5 mm	N/A
PM2830HX	N/A 30 mm	N/A 32 mm	N/A 28 mm	N/A 6 mm	N/A 2 mm	N/A
PM3635HX	N/A 35 mm	N/A 40 mm	N/A 36 mm	N/A 6 mm	N/A 2 mm	N/A
PM4020HX	N/A 20 mm	N/A 44 mm	N/A 40 mm	N/A 8 mm	N/A 2 mm	N/A
PM4030HX	N/A 30 mm	N/A 44 mm	N/A 40 mm	N/A 8 mm	N/A 2 mm	N/A
PM5040HX	N/A 40 mm	N/A 55 mm	N/A 50 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM7040HX	N/A 40 mm	N/A 75 mm	N/A 70 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM7070HX	N/A 70 mm	N/A 75 mm	N/A 70 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM80100HX	N/A 100 mm	N/A 85 mm	N/A 80 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM9060HX	N/A 60 mm	N/A 95 mm	N/A 90 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM10080HX	N/A 80 mm	N/A 105 mm	N/A 100 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM12060HX	N/A 60 mm	N/A 125 mm	N/A 120 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM120100HX	N/A 100 mm	N/A 125 mm	N/A 120 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM12560HX	N/A 60 mm	N/A 130 mm	N/A 125 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM125100HX	N/A 100 mm	N/A 130 mm	N/A 125 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM150100HX	N/A 100 mm	N/A 155 mm	N/A 150 mm	N/A	N/A 2.5 mm	N/A

Part Number

B

Do

Di

Ø dL

ep

CAD

PM0812HX

N/A 12 mm

N/A 10 mm

N/A 8 mm

N/A

N/A 1 mm

N/A

PM1015HX

N/A 15 mm

N/A 12 mm

N/A 10 mm

N/A 4 mm

N/A 1 mm

N/A

PM1020HX

N/A 20 mm

N/A 12 mm

N/A 10 mm

N/A 4 mm

N/A 1 mm

N/A

PM1215HX

N/A 15 mm

N/A 14 mm

N/A 12 mm

N/A 4 mm

N/A 1 mm

N/A

PM1615HX

N/A 15 mm

N/A 18 mm

N/A 16 mm

N/A 4 mm

N/A 1 mm

N/A

PM1815HX

N/A 15 mm

N/A 20 mm

N/A 18 mm

N/A 4 mm

N/A 1 mm

N/A

PM1820HX

N/A 20 mm

N/A 18 mm

N/A 4 mm

N/A 1 mm

N/A

PM2230HX

N/A 30 mm

N/A 25 mm

N/A 22 mm

N/A 6 mm

N/A 1.5 mm

N/A

PM2520HX

N/A 20 mm

N/A 28 mm

N/A 25 mm

N/A 6 mm

N/A 1.5 mm

N/A

PM2525HX

N/A 25 mm

N/A 28 mm

N/A 25 mm

N/A 6 mm

N/A 1.5 mm

N/A

PM2830HX

N/A 30 mm

N/A 32 mm

N/A 28 mm

N/A 6 mm

N/A 2 mm

N/A

PM3635HX

N/A 35 mm

N/A 40 mm

N/A 36 mm

N/A 6 mm

N/A 2 mm

N/A

PM4020HX

N/A 20 mm

N/A 44 mm

N/A 40 mm

N/A 8 mm

N/A 2 mm

N/A

PM4030HX

N/A 30 mm

N/A 44 mm

N/A 40 mm

N/A 8 mm

N/A 2 mm

N/A

PM5040HX

N/A 40 mm

N/A 55 mm

N/A 50 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM7040HX

N/A 40 mm

N/A 75 mm

N/A 70 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM7070HX

N/A 70 mm

N/A 75 mm

N/A 70 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM80100HX

N/A 100 mm

N/A 85 mm

N/A 80 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM9060HX

N/A 60 mm

N/A 95 mm

N/A 90 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM10080HX

N/A 80 mm

N/A 105 mm

N/A 100 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM12060HX

N/A 60 mm

N/A 125 mm

N/A 120 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM120100HX

N/A 100 mm

N/A 125 mm

N/A 120 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM12560HX

N/A 60 mm

N/A 130 mm

N/A 125 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM125100HX

N/A 100 mm

N/A 130 mm

N/A 125 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM150100HX

N/A 100 mm

N/A 155 mm

N/A 150 mm

N/A

N/A 2.5 mm

N/A
