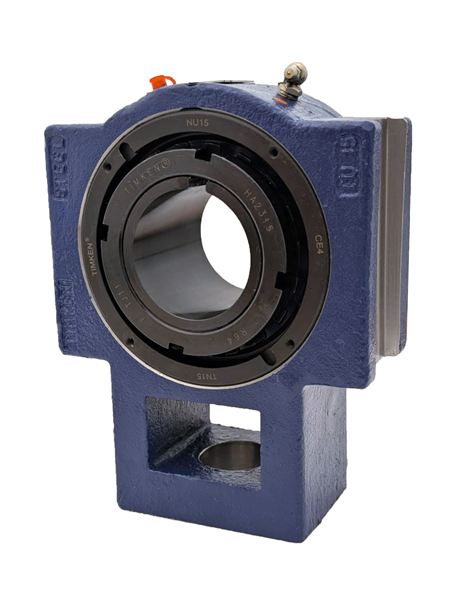

Tapered Adapter Take-Up Block On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

Part Number	Bearing Number	Shaft Size	Slot to Slot	Opening Height	Slot Width	C0 - Static Load	C - Dynamic Load (Basic)	CAD
TATU10K111S	N/A 22210	N/A 1 11/16 in	N/A 4.5 in114.3 mm	N/A 1.38 in34.9 mm	N/A 0.81 in20.6 mm	N/A 26600 lbf118000 N	N/A 26300 lbf117000 N	N/A
TATU10K112S	N/A 22210	N/A 1 3/4 in	N/A 4.5 in114.3 mm	N/A 1.38 in34.9 mm	N/A 0.81 in20.6 mm	N/A 26600 lbf118000 N	N/A 26300 lbf117000 N	N/A
TATU10K045S	N/A 22210	N/A 45 mm	N/A 4.5 in114.3 mm	N/A 1.38 in34.9 mm	N/A 0.81 in20.6 mm	N/A 26600 lbf118000 N	N/A 26300 lbf117000 N	N/A
TATU11K115S	N/A 22211	N/A 1 15/16 in	N/A 4.5 in114.3 mm	N/A 1.38 in34.9 mm	N/A 0.81 in20.6 mm	N/A 31900 lbf142000 N	N/A 31400 lbf140000 N	N/A
TATU11K050S	N/A 22211	N/A 50 mm	N/A 4.5 in114.3 mm	N/A 1.38 in34.9 mm	N/A 0.81 in20.6 mm	N/A 31900 lbf142000 N	N/A 31400 lbf140000 N	N/A
TATU11K200S	N/A 22211	N/A 2 in	N/A 4.5 in114.3 mm	N/A 1.38 in34.9 mm	N/A 0.81 in20.6 mm	N/A 31900 lbf142000 N	N/A 31400 lbf140000 N	N/A
TATU13K203S	N/A 22213	N/A 2 3/16 in	N/A 5.13 in130.2 mm	N/A 1.38 in34.9 mm	N/A 1.06 in27 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
TATU13K204S	N/A 22213	N/A 2 1/4 in	N/A 5.13 in130.2 mm	N/A 1.38 in34.9 mm	N/A 1.06 in27 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
TATU13K060S	N/A 22213	N/A 60 mm	N/A 5.13 in130.2 mm	N/A 1.38 in34.9 mm	N/A 1.06 in27 mm	N/A 48600 lbf216000 N	N/A 46400 lbf206000 N	N/A
TATU15K207S	N/A 22215	N/A 2 7/16 in	N/A 5.94 in150.9 mm	N/A 1.56 in39.6 mm	N/A 1.81 in46 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
TATU15K208S	N/A 22215	N/A 2 1/2 in	N/A 5.94 in150.9 mm	N/A 1.56 in39.6 mm	N/A 1.81 in46 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
TATU15K065S	N/A 22215	N/A 65 mm	N/A 5.94 in150.9 mm	N/A 1.56 in39.6 mm	N/A 1.81 in46 mm	N/A 54100 lbf240000 N	N/A 49900 lbf222000 N	N/A
TATU16K211S	N/A 22216	N/A 2 11/16 in	N/A 6.81 in173 mm	N/A 1.88 in47.6 mm	N/A 1.81 in46 mm	N/A 62500 lbf278000 N	N/A 57200 lbf254000 N	N/A
TATU16K212S	N/A 22216	N/A 2 3/4 in	N/A 6.81 in173 mm	N/A 1.88 in47.6 mm	N/A 1.81 in46 mm	N/A 62500 lbf278000 N	N/A 57200 lbf254000 N	N/A
TATU16K070S	N/A 22216	N/A 70 mm	N/A 6.81 in173 mm	N/A 1.88 in47.6 mm	N/A 1.81 in46 mm	N/A 62500 lbf278000 N	N/A 57200 lbf254000 N	N/A
TATU17K215S	N/A 22217	N/A 2 15/16 in	N/A 6.81 in173 mm	N/A 1.88 in47.6 mm	N/A 1.81 in46 mm	N/A 71900 lbf320000 N	N/A 66900 lbf297000 N	N/A
TATU17K075S	N/A 22217	N/A 75 mm	N/A 6.81 in173 mm	N/A 1.88 in47.6 mm	N/A 1.81 in46 mm	N/A 71900 lbf320000 N	N/A 66900 lbf297000 N	N/A
TATU17K300S	N/A 22217	N/A 3 in	N/A 6.81 in173 mm	N/A 1.88 in47.6 mm	N/A 1.81 in46 mm	N/A 71900 lbf320000 N	N/A 66900 lbf297000 N	N/A
TATU18K080S	N/A 22218	N/A 80 mm	N/A 8.63 in219.1 mm	N/A 2.13 in54 mm	N/A 2.06 in52.4 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
TATU18K303S	N/A 22218	N/A 3 3/16 in	N/A 8.63 in219.1 mm	N/A 2.13 in54 mm	N/A 2.06 in52.4 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
TATU18K304S	N/A 22218	N/A 3 1/4 in	N/A 8.63 in219.1 mm	N/A 2.13 in54 mm	N/A 2.06 in52.4 mm	N/A 87200 lbf388000 N	N/A 79700 lbf355000 N	N/A
TATU20K307S	N/A 22220	N/A 3 7/16 in	N/A 8.63 in219.2 mm	N/A 2.06 in52.3 mm	N/A 2.06 in52.3 mm	N/A 113000 lbf502000 N	N/A 97700 lbf435000 N	N/A
TATU20K308S	N/A 22220	N/A 3 1/2 in	N/A 8.63 in219.2 mm	N/A 2.06 in52.3 mm	N/A 2.06 in52.3 mm	N/A 113000 lbf502000 N	N/A 97700 lbf435000 N	N/A
TATU20K090S	N/A 22220	N/A 90 mm	N/A 8.63 in219.2 mm	N/A 2.06 in52.3 mm	N/A 2.06 in52.3 mm	N/A 113000 lbf502000 N	N/A 97700 lbf435000 N	N/A
TATU22K100S	N/A 22222	N/A 100 mm	N/A 9.5 in241.3 mm	N/A 2.13 in54.1 mm	N/A 2.06 in52.3 mm	N/A 147000 lbf653000 N	N/A 125000 lbf555000 N	N/A

Part Number

Bearing Number

Shaft Size

Slot to Slot

Opening Height

Slot Width

C0 - Static Load

C - Dynamic Load (Basic)

CAD

TATU10K111S

N/A 22210

N/A 1 11/16 in

N/A 4.5 in114.3 mm

N/A 1.38 in34.9 mm

N/A 0.81 in20.6 mm

N/A 26600 lbf118000 N

N/A 26300 lbf117000 N

N/A

TATU10K112S

N/A 22210

N/A 1 3/4 in

N/A 4.5 in114.3 mm

N/A 1.38 in34.9 mm

N/A 0.81 in20.6 mm

N/A 26600 lbf118000 N

N/A 26300 lbf117000 N

N/A

TATU10K045S

N/A 22210

N/A 45 mm

N/A 4.5 in114.3 mm

N/A 1.38 in34.9 mm

N/A 0.81 in20.6 mm

N/A 26600 lbf118000 N

N/A 26300 lbf117000 N

N/A

TATU11K115S

N/A 22211

N/A 1 15/16 in

N/A 4.5 in114.3 mm

N/A 1.38 in34.9 mm

N/A 0.81 in20.6 mm

N/A 31900 lbf142000 N

N/A 31400 lbf140000 N

N/A

TATU11K050S

N/A 22211

N/A 50 mm

N/A 4.5 in114.3 mm

N/A 1.38 in34.9 mm

N/A 0.81 in20.6 mm

N/A 31900 lbf142000 N

N/A 31400 lbf140000 N

N/A

TATU11K200S

N/A 22211

N/A 2 in

N/A 4.5 in114.3 mm

N/A 1.38 in34.9 mm

N/A 0.81 in20.6 mm

N/A 31900 lbf142000 N

N/A 31400 lbf140000 N

N/A

TATU13K203S

N/A 22213

N/A 2 3/16 in

N/A 5.13 in130.2 mm

N/A 1.38 in34.9 mm

N/A 1.06 in27 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

TATU13K204S

N/A 22213

N/A 2 1/4 in

N/A 5.13 in130.2 mm

N/A 1.38 in34.9 mm

N/A 1.06 in27 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

TATU13K060S

N/A 22213

N/A 60 mm

N/A 5.13 in130.2 mm

N/A 1.38 in34.9 mm

N/A 1.06 in27 mm

N/A 48600 lbf216000 N

N/A 46400 lbf206000 N

N/A

TATU15K207S

N/A 22215

N/A 2 7/16 in

N/A 5.94 in150.9 mm

N/A 1.56 in39.6 mm

N/A 1.81 in46 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

TATU15K208S

N/A 22215

N/A 2 1/2 in

N/A 5.94 in150.9 mm

N/A 1.56 in39.6 mm

N/A 1.81 in46 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

TATU15K065S

N/A 22215

N/A 65 mm

N/A 5.94 in150.9 mm

N/A 1.56 in39.6 mm

N/A 1.81 in46 mm

N/A 54100 lbf240000 N

N/A 49900 lbf222000 N

N/A

TATU16K211S

N/A 22216

N/A 2 11/16 in

N/A 6.81 in173 mm

N/A 1.88 in47.6 mm

N/A 1.81 in46 mm

N/A 62500 lbf278000 N

N/A 57200 lbf254000 N

N/A

TATU16K212S

N/A 22216

N/A 2 3/4 in

N/A 6.81 in173 mm

N/A 1.88 in47.6 mm

N/A 1.81 in46 mm

N/A 62500 lbf278000 N

N/A 57200 lbf254000 N

N/A

TATU16K070S

N/A 22216

N/A 70 mm

N/A 6.81 in173 mm

N/A 1.88 in47.6 mm

N/A 1.81 in46 mm

N/A 62500 lbf278000 N

N/A 57200 lbf254000 N

N/A

TATU17K215S

N/A 22217

N/A 2 15/16 in

N/A 6.81 in173 mm

N/A 1.88 in47.6 mm

N/A 1.81 in46 mm

N/A 71900 lbf320000 N

N/A 66900 lbf297000 N

N/A

TATU17K075S

N/A 22217

N/A 75 mm

N/A 6.81 in173 mm

N/A 1.88 in47.6 mm

N/A 1.81 in46 mm

N/A 71900 lbf320000 N

N/A 66900 lbf297000 N

N/A

TATU17K300S

N/A 22217

N/A 3 in

N/A 6.81 in173 mm

N/A 1.88 in47.6 mm

N/A 1.81 in46 mm

N/A 71900 lbf320000 N

N/A 66900 lbf297000 N

N/A

TATU18K080S

N/A 22218

N/A 80 mm

N/A 8.63 in219.1 mm

N/A 2.13 in54 mm

N/A 2.06 in52.4 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

TATU18K303S

N/A 22218

N/A 3 3/16 in

N/A 8.63 in219.1 mm

N/A 2.13 in54 mm

N/A 2.06 in52.4 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

TATU18K304S

N/A 22218

N/A 3 1/4 in

N/A 8.63 in219.1 mm

N/A 2.13 in54 mm

N/A 2.06 in52.4 mm

N/A 87200 lbf388000 N

N/A 79700 lbf355000 N

N/A

TATU20K307S

N/A 22220

N/A 3 7/16 in

N/A 8.63 in219.2 mm

N/A 2.06 in52.3 mm

N/A 113000 lbf502000 N

N/A 97700 lbf435000 N

N/A

TATU20K308S

N/A 22220

N/A 3 1/2 in

N/A 8.63 in219.2 mm

N/A 2.06 in52.3 mm

N/A 113000 lbf502000 N

N/A 97700 lbf435000 N

N/A

TATU20K090S

N/A 22220

N/A 90 mm

N/A 8.63 in219.2 mm

N/A 2.06 in52.3 mm

N/A 113000 lbf502000 N

N/A 97700 lbf435000 N

N/A

TATU22K100S

N/A 22222

N/A 100 mm

N/A 9.5 in241.3 mm

N/A 2.13 in54.1 mm

N/A 2.06 in52.3 mm

N/A 147000 lbf653000 N

N/A 125000 lbf555000 N

N/A
