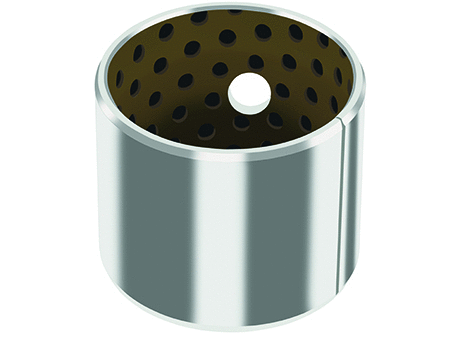

GGB DX10 bushes - metric On The Timken Company

Discover the New “My Dashboard” Experience

Join Eric Stasiowski, manager – online marketing & ecommerce, to see how you can save key items like documents, bearings, and distributor locations directly to your account.

View Video

Analyze Bearing Performance in an Application with Timken ^® Syber ^® Bearing System Designer

A powerful software tool that combines calculators and configurators to assist you with application design, bearing selection, installation, and troubleshooting. It’s free, easy-to-use, and accessible 24/7.

Learn More

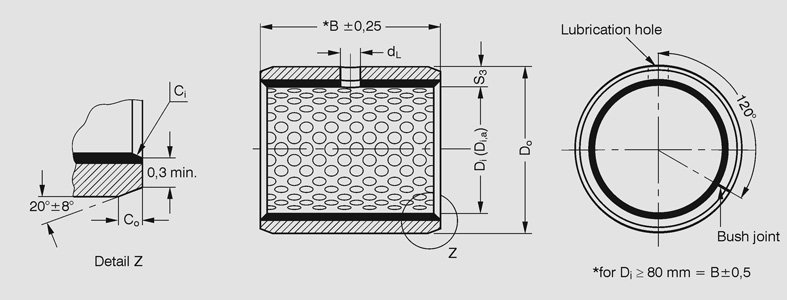

Part Number	B	Do	Di	Ø dL	ep	CAD
PM1010DX10	N/A 10 mm	N/A 12 mm	N/A 10 mm	N/A 3 mm	N/A 1 mm	N/A
PM220120DX10	N/A 120 mm	N/A 225 mm	N/A 220 mm	N/A	N/A 2.5 mm	N/A
PM22060DX10	N/A 60 mm	N/A 225 mm	N/A 220 mm	N/A	N/A 2.5 mm	N/A
PM200120DX10	N/A 120 mm	N/A 205 mm	N/A 200 mm	N/A	N/A 2.5 mm	N/A
PM12060DX10	N/A 60 mm	N/A 125 mm	N/A 120 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM11080DX10	N/A 80 mm	N/A 115 mm	N/A 110 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM9060DX10	N/A 60 mm	N/A 95 mm	N/A 90 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM9090DX10	N/A 90 mm	N/A 95 mm	N/A 90 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM8080DX10	N/A 80 mm	N/A 85 mm	N/A 80 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM8060DX10	N/A 60 mm	N/A 85 mm	N/A 80 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM7560DX10	N/A 60 mm	N/A 80 mm	N/A 75 mm	N/A 9.5 mm	N/A 2.5 mm	N/A
PM6570DX10	N/A 70 mm	N/A 70 mm	N/A 65 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM6060DX10	N/A 60 mm	N/A 65 mm	N/A 60 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM5040DX10	N/A 40 mm	N/A 55 mm	N/A 50 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM5050DX10	N/A 50 mm	N/A 55 mm	N/A 50 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM5060DX10	N/A 60 mm	N/A 55 mm	N/A 50 mm	N/A 8 mm	N/A 2.5 mm	N/A
PM4050DX10	N/A 50 mm	N/A 44 mm	N/A 40 mm	N/A 8 mm	N/A 2 mm	N/A
PM3530DX10	N/A 30 mm	N/A 39 mm	N/A 35 mm	N/A 6 mm	N/A 2 mm	N/A
PM2830DX10	N/A 30 mm	N/A 32 mm	N/A 28 mm	N/A 6 mm	N/A 2 mm	N/A
PM2515DX10	N/A 15 mm	N/A 28 mm	N/A 25 mm	N/A 6 mm	N/A 1.5 mm	N/A
PM2520DX10	N/A 20 mm	N/A 28 mm	N/A 25 mm	N/A 6 mm	N/A 1.5 mm	N/A
PM2525DX10	N/A 25 mm	N/A 28 mm	N/A 25 mm	N/A 6 mm	N/A 1.5 mm	N/A
PM2015DX10	N/A 15 mm	N/A 23 mm	N/A 20 mm	N/A 4 mm	N/A 1.5 mm	N/A
PM2020DX10	N/A 20 mm	N/A 23 mm	N/A 20 mm	N/A 4 mm	N/A 1.5 mm	N/A
PM1215DX10	N/A 15 mm	N/A 14 mm	N/A 12 mm	N/A 4 mm	N/A 1 mm	N/A

Part Number

B

Do

Di

Ø dL

ep

CAD

PM1010DX10

N/A 10 mm

N/A 12 mm

N/A 10 mm

N/A 3 mm

N/A 1 mm

N/A

PM220120DX10

N/A 120 mm

N/A 225 mm

N/A 220 mm

N/A

N/A 2.5 mm

N/A

PM22060DX10

N/A 60 mm

N/A 225 mm

N/A 220 mm

N/A

N/A 2.5 mm

N/A

PM200120DX10

N/A 120 mm

N/A 205 mm

N/A 200 mm

N/A

N/A 2.5 mm

N/A

PM12060DX10

N/A 60 mm

N/A 125 mm

N/A 120 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM11080DX10

N/A 80 mm

N/A 115 mm

N/A 110 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM9060DX10

N/A 60 mm

N/A 95 mm

N/A 90 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM9090DX10

N/A 90 mm

N/A 95 mm

N/A 90 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM8080DX10

N/A 80 mm

N/A 85 mm

N/A 80 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM8060DX10

N/A 60 mm

N/A 85 mm

N/A 80 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM7560DX10

N/A 60 mm

N/A 80 mm

N/A 75 mm

N/A 9.5 mm

N/A 2.5 mm

N/A

PM6570DX10

N/A 70 mm

N/A 65 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM6060DX10

N/A 60 mm

N/A 65 mm

N/A 60 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM5040DX10

N/A 40 mm

N/A 55 mm

N/A 50 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM5050DX10

N/A 50 mm

N/A 55 mm

N/A 50 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM5060DX10

N/A 60 mm

N/A 55 mm

N/A 50 mm

N/A 8 mm

N/A 2.5 mm

N/A

PM4050DX10

N/A 50 mm

N/A 44 mm

N/A 40 mm

N/A 8 mm

N/A 2 mm

N/A

PM3530DX10

N/A 30 mm

N/A 39 mm

N/A 35 mm

N/A 6 mm

N/A 2 mm

N/A

PM2830DX10

N/A 30 mm

N/A 32 mm

N/A 28 mm

N/A 6 mm

N/A 2 mm

N/A

PM2515DX10

N/A 15 mm

N/A 28 mm

N/A 25 mm

N/A 6 mm

N/A 1.5 mm

N/A

PM2520DX10

N/A 20 mm

N/A 28 mm

N/A 25 mm

N/A 6 mm

N/A 1.5 mm

N/A

PM2525DX10

N/A 25 mm

N/A 28 mm

N/A 25 mm

N/A 6 mm

N/A 1.5 mm

N/A

PM2015DX10

N/A 15 mm

N/A 23 mm

N/A 20 mm

N/A 4 mm

N/A 1.5 mm

N/A

PM2020DX10

N/A 20 mm

N/A 23 mm

N/A 20 mm

N/A 4 mm

N/A 1.5 mm

N/A

PM1215DX10

N/A 15 mm

N/A 14 mm

N/A 12 mm

N/A 4 mm

N/A 1 mm

N/A
